Our company offers customized services and turnkey projects for the design and manufacture, installation and commission, personnel training, after-sales maintenance, etc. of biaxially oriented stretching film production line.

Customization scheme of production line

R & D Experiment Platform

Service & After-sales Service

Ancillary Device for Production Lines

+
  • Biaxial Simultaneous Stretching Film Pilot Line.jpg

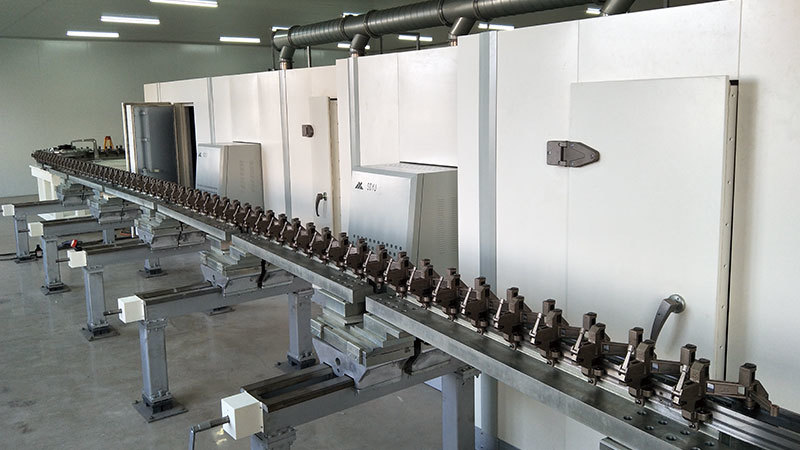

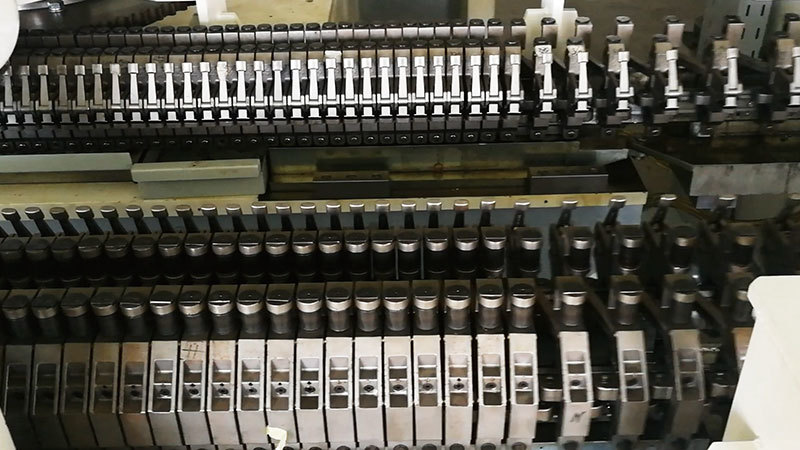

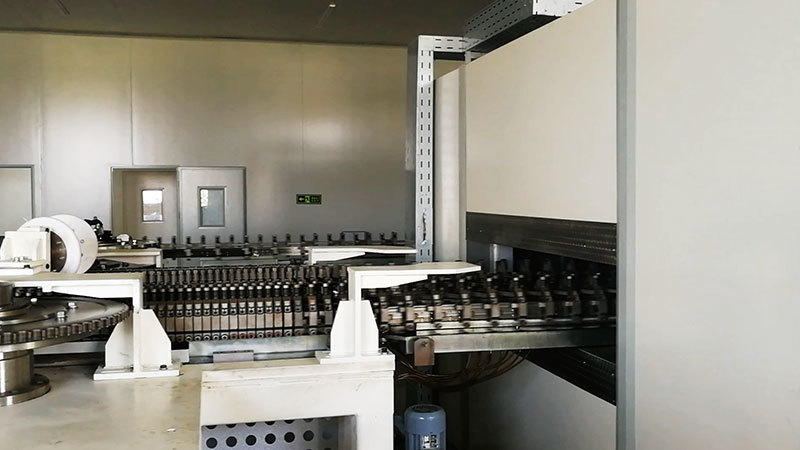

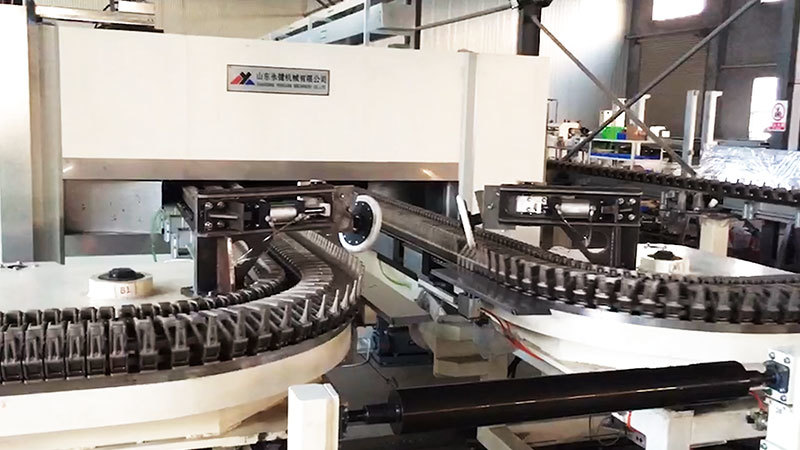

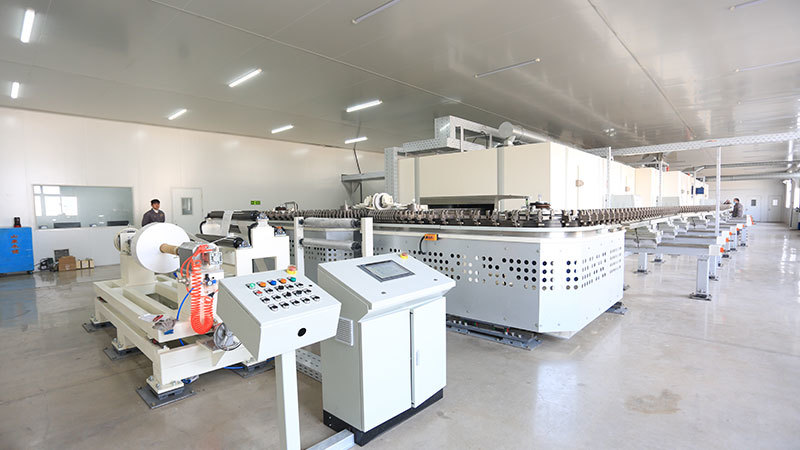

Biaxial Simultaneous Stretching Film Pilot Line

Description:

Sample film thickness: 50-1200 um;
Thickness range: 15-70 um;
Width min.: 250-700mm;
Width max.: 1000-2000mm;
Max. stretching rate:
MD rate: 1：7;
TD rate: 1：10;
Oven layout: preheating 2, stretching 3, annealing 3, run-off 1, cooling 1; the length of each zone is 2m;
Temperature range: 150-300℃;
Line speed: 100m/min.
