Services
Our company offers customized services and turnkey projects for the design and manufacture, installation and commission, personnel training, after-sales maintenance, etc. of biaxially oriented stretching film production line.

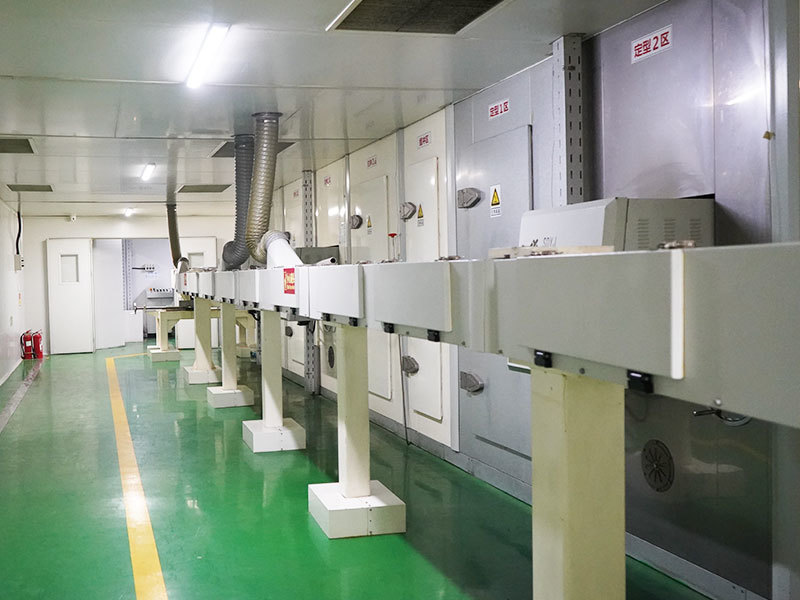

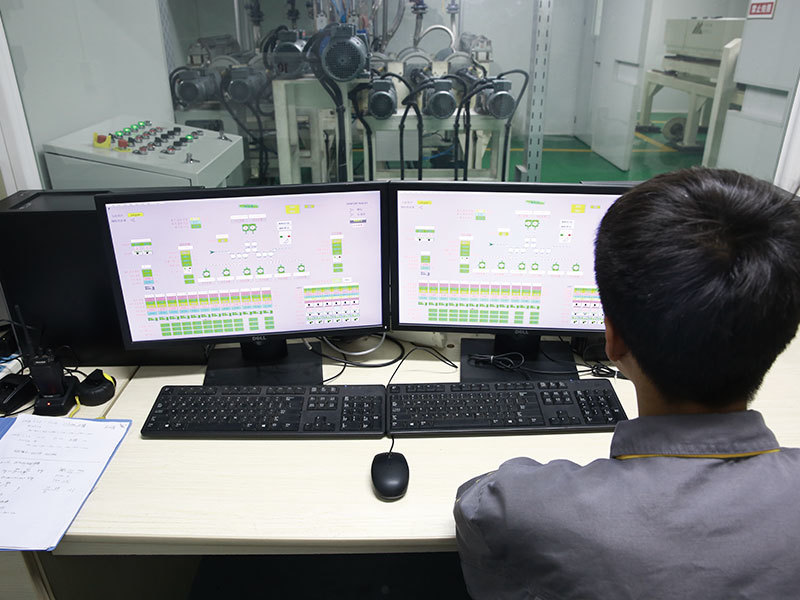

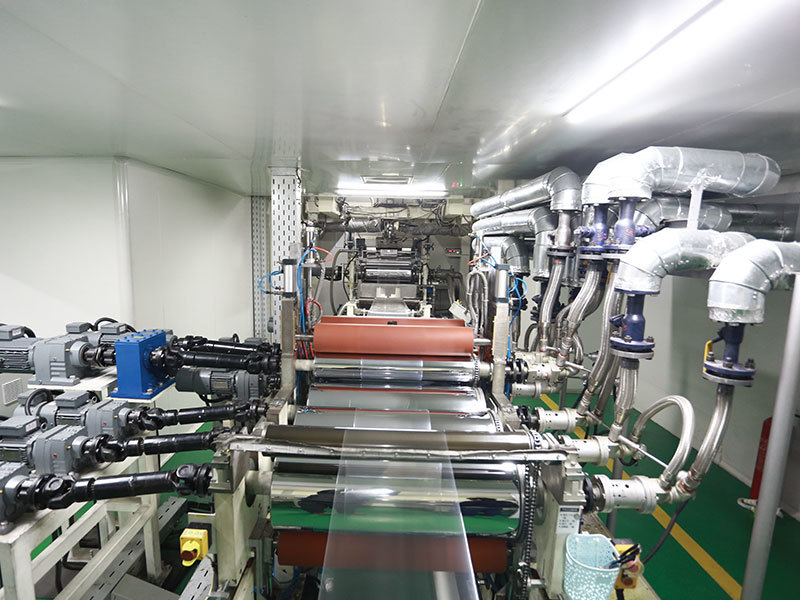

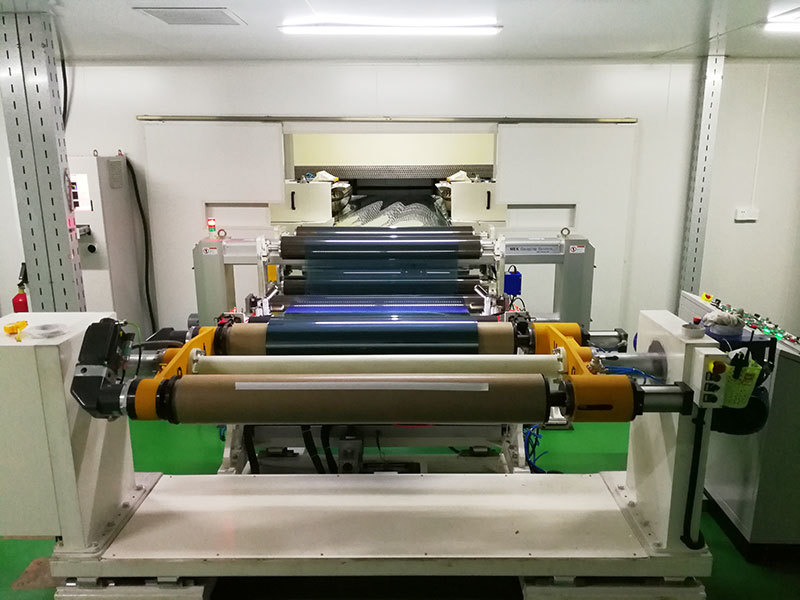

Multifunctional Biaxial Sequential Stretching Film Pilot Line
Description:
Materials: PET, PETG, RPET, PP, PA, PE, PI, PS, PEN, PLA, PBAT, LCP, PPS, PEEK, PVDF, battery separator, etc.;
Film thickness range: 12~250um;
Stretching direction: machine direction stretching, transverse direction stretching, Biaxial sequential stretching;
Film width max.: 1100mm;
Line speed: 60 m/min;
Extrusion layer configuration：A\B\C\AB\ABA\ABC;
MD rate: 1：10 ;
Stretch method: single-gap stretching, two-gap stretching;
TD rate: 1：10;
Width min.: 100-1100mm;
Width max.: 100-1100mm;
Oven layout: preheating 2, stretching 2, annealing 2, cooling 1.
Film thickness range: 12~250um;
Stretching direction: machine direction stretching, transverse direction stretching, Biaxial sequential stretching;
Film width max.: 1100mm;
Line speed: 60 m/min;
Extrusion layer configuration：A\B\C\AB\ABA\ABC;
MD rate: 1：10 ;
Stretch method: single-gap stretching, two-gap stretching;
TD rate: 1：10;
Width min.: 100-1100mm;
Width max.: 100-1100mm;
Oven layout: preheating 2, stretching 2, annealing 2, cooling 1.
|
|
|
|
|
|
|
 |
